15-001130-EM-Tec C30 fast drying conductive carbon paint

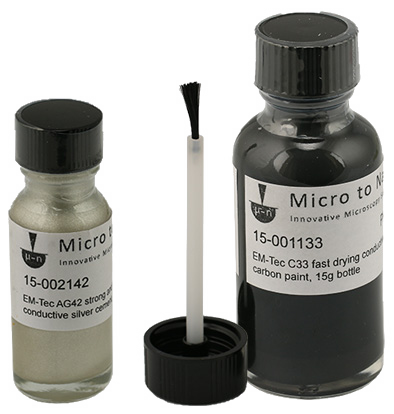

EM-Tec conductive paints, pastes and cements

EM-Tec conductive paints, pastes and cements





EM-Tec conductive paints, pastes and cements



The EM-Tec conductive paints, pastes and cements are selected for sample preparation use in electron microscopy, focused ion beam, electron microprobe and scanning probe applications. The EM-Tec conductive paints, pasts and cements offer different properties to cover a variety of applications. The current product line consists of:

  • EM-Tec C30 premium water based conductivecarbon paint
  • EM-Tec C32 novel water based graphene-carbon paint
  • EM-Tec C33 fast drying conductive carbon paint
  • EM-Tec STC33 Isopropanol solvent / thinner / cleaner for EM-Tec C33 carbon paint
  • EM-Tec C38 strong conductive carbon cement
  • EM-Tec AG15 silver paint
  • EM-Tec STC15 MEK solvent / thinner / cleaner for EM-Tec AG15 silver paint
  • EM-Tec AG42 strong and highly conductive silver cement
  • EM-Tec AG44 conductive silver paint
  • EM-Tec AG46 water-based conductive silver paint
  • EM-Tec NI41 strong and good conductive nickel cement
  • EM-Tec STC39 Acetone solvent / thinner / cleaner for Acrylic based conductive paints / cement

Conductive paint and glues are ideal to make conductive paths to ground for SEM samples. Used for making contacts, conductive bonding of samples on specimen stubs or shielding surfaces of non-conducting samples. The EM-Tec conductive paint and cements are used for many applications besides electron microscopy in repairing contacts, tracks on circuit boards, prototyping, conductive lubrication, electrochemical plating and EMI/RFI shielding. The EM-Tec C30 premium water based conductive carbon paint is solvent free and should be preferred to avoid hydro-carbon contamination in the SEM.

Specifications of the EM-Tec conductive paints and cements



Paint / Cement

EM-Tec
C30

EM-Tec
C32

EM-Tec
C33

EM-Tec
C38

EM-Tec
AG15

EM-Tec AG42

EM-Tec AG44

EM-Tec AG46

EM-Tec
NI41

Product # 15-001130
15-001131
15-001132 15-001133 15-001138 15-002114
15-002115
15-002141
15-002142
15-002143
15-002144
15-002145
15-002146
15-004141
Filler Type

wt%

Graphite 20% Graphene 10% Graphite

10%

Carbon

15%

Silver

58%

Silver

73%

Silver

61%

Silver

60%

Nickel

50%

Type thin paste thin paste thin paint thin paste paint thin paste thin paste paint thin paste
Resistance (dry) 30 ohm/sq 30 ohm/sq 1200 ohm/sq 50 ohm/sq 0.015 ohm/sq 0.01 ohm/sq 0.01 ohm/sq 0.01 ohm/sq 0.7 ohm/sq
Binder gel gel polymer acrylic thermoplastic resin acrylic acrylic urethane acrylic
Solvent Water Water Isopropanol Acetone/ MEK MEK Toluene
/acetone
Acetone Water Toluene/
acetone
Density 1.12g/cm3 1.08g/cm3 0.84g/cm3 0.85g/cm3 1.63g/cm3 2.05g/cm3 1.7g/cm3 1.5g/cm3 2.1g/cm3
Touch dry 5min 5min >1 min 3min 10min 5min 3min 5min 5min
Full cure time @ 22°C 24hr 24hr 15min 24hrs 8hrs 24hrs 24hrs 24hrs 24hrs
Full cure time @ 65°C 45min 45min >5min 30min 30min 30min 30min 3hrs 30min
Minimum temperature -20°C -20°C -20°C -40°C -20°C -40°C -40°C -40°C -40°C
Maximum temperature +140°C +140°C +200°C +120°C +105°C +120°C +120°C +120°C +120°C
Mechanical strength low low low high medium high low low high
Vacuum compatible (dry) excellent excellent yes yes yes yes yes yes yes
RoHs compliant yes yes yes yes yes yes yes yes yes
Weight 40g/100g 25g 15g 25g 15g / 25g 15g / 25g 15g / 25g 15g / 25g 25g
Bottle size 60cc/100cc 30cc 30cc 30cc 15cc / 30cc 15cc/15cc 15cc/30cc 15cc/30cc 30cc
Thinner-Extender Water Water Isopropanol Acetone MEK Acetone Acetone Water Acetone
Shelf life @ 20°C > 3 year > 3 year > 3 year > 3 year > 3 year > 3 year > 3 year > 3 year > 3 year
