EM-Tec Ø3mm embedding tubes for TEM Transmission Electron Microscope sample preparation
Introduction



The EM-Tec Ø3mm embedding tube for TEM sample preparation are useful when making cross sections of materials for examining in the TEM. The 3mm outer diameter is compatible with the TEM sample holder; the 2mm or 1.5mm inside diameter leaves enough space to embed the sample(s). The sample is embedded with a suitable epoxy (such as Hysol or Torr-Seal), after that a thin section is cut with a micro-saw and finally thinned for TEM imaging by mechanical polishing or ion-beam polishing

The EM-Tec embedding tubes are offered in different materials to avoid cross contamination with the sample. Standard outside diameter is 3mm; inside diameter is 2mm or 1.5mm. Sold in lengths of 50mm in pkg/2.





EM-Tec Ø3mm embedding tubes for TEM sample preparation

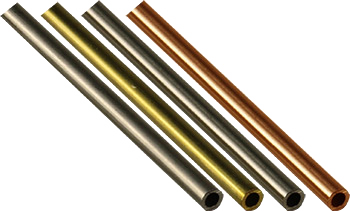

Titanium Gr. 2,  Brass, AISI 304 and Copper
EM-Tec Ø3mm embedding tubes for TEM sample preparation



Specifications of the EM-Tec Ø3mm embedding tubes:



Product Nr Material O.D. I.D. Length Unit
29-001710 Aluminiumoxide Ø 3mm Ø 1.5mm 50mm Pkg/2
29-001713 Aluminium Ø 3mm Ø 2mm 50mm Pkg/2
29-001722 Titanium Gr. 2 Ø 3mm Ø 2mm 50mm Pkg/2
29-001726 AISI 304 Ø 3mm Ø 2mm 50mm Pkg/2
29-001729 Brass Ø 3mm Ø 2mm 50mm Pkg/2
29-001730 Copper Ø 3mm Ø 2mm 50mm Pkg/2
